One card. A whole modern Apple //e Enhanced.
For any Apple 2 with slots (IIgs testing still ongoing). Crisp, fully cycle-accurate HDMI video with SHR, 35 MHz acceleration, 8 MB RAM, virtual Phasor (dual Mockingboard), USB-C mouse, SmartPort, 32 MB RAM disk, Disk II with WOZ support, Ethernet, SuperSprite, and an 80 MHz Z80 Applicard.
Rev.A3 — designed by Karl ‘KKR75’ Asseily
Every card you ever wanted, reimagined in one.

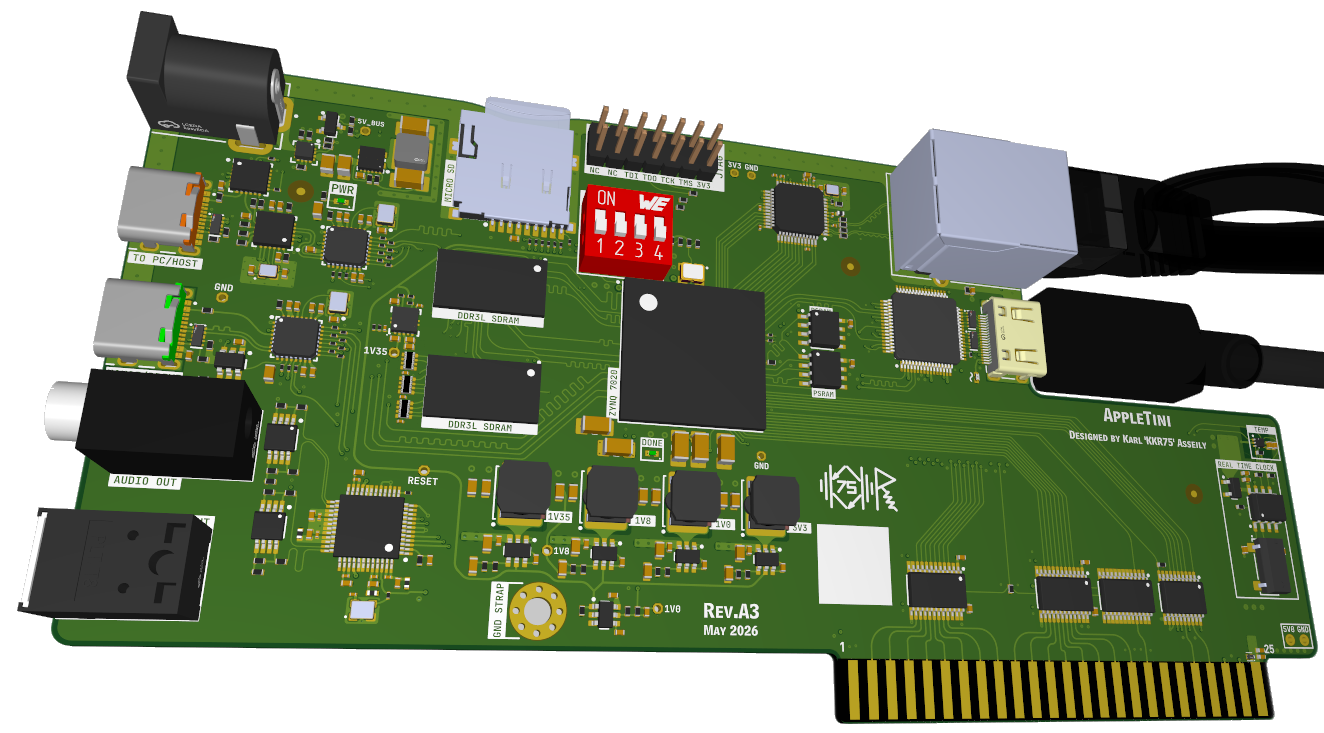

The Appletini ONE is a single card for any slotted Apple II. An FPGA on board watches the bus cycle by cycle and stands in for a whole shelf of hardware at once — a display, an accelerator, megabytes of RAM, sound cards, disk controllers, a network card and more — then paints the result to a modern screen over HDMI. Your machine stays exactly what it is; it just gains forty years of upgrades in the slot next door.
Colour-coded to the rainbow it was named for.
Cycle-accurate HDMI
A per-cycle NTSC/PAL renderer reproduces the real display, dot for dot, and sends it out over mini-HDMI — no capture card, no scaler guesswork.
Super Hi-Res, SHR4 extended modes and SuperSprite (TMS9918) on top.
Acceleration to 35 MHz
A virtual TransWarp-class accelerator runs your code far faster while staying faithful to timing-sensitive software through a 1 MHz lock.
8 MB RAM and an 80 MHz Z80 Applicard for CP/M come along for the ride.
Virtual Phasor
A full dual-Mockingboard Phasor in the slot: stereo synthesis and speech, out the card’s own audio jack or mixed into HDMI.
Bring your own real Mockingboard too — it plays perfectly alongside.
SmartPort & Disk II
Boot from SD through a SmartPort hard disk, or mount floppy images with true WOZ fidelity for the copy-protected classics.
Plus a 32 MB RAM disk for instant scratch space.
USB, on an Apple II
Plug a modern USB-C mouse straight in — it presents as a genuine mouse card. A mini keyboard rides the same port.
No adapters, no AppleMouse hardware to hunt down.
Ethernet & the web
A virtual Uthernet II puts your Apple II on the network. The bundled disk browses the web and streams images to the screen.
Real TCP/IP, over the card’s own RJ45.
- Acceleration
- 35 MHz
- Fast RAM
- 8 MB
- RAM disk
- 32 MB
- Z80 Applicard
- 80 MHz
